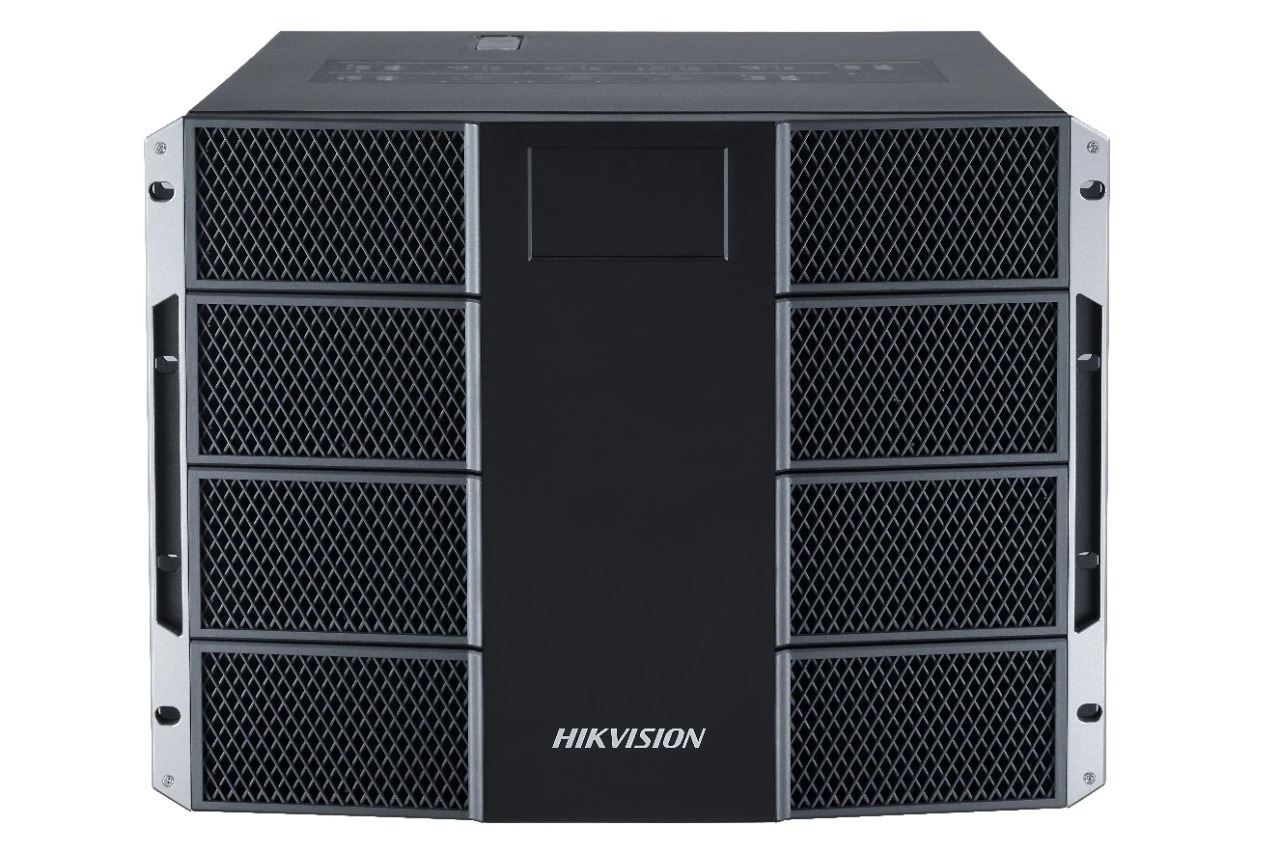

Video Wall Controller Casing
- DS-C30S-S23 is a chassis with 23 slots. Adopting the structure of main control board plus input and output board, and supporting mixed insertion of input and output boards, it supports displaying multiple dynamic images on multiple display terminals at the same time
- A signal source can displayed on the M x N (M ≥ 1, N ≥ 1) display units
- Multiple signal sources are supported, including VGA, DVI, HDMI, DP, and IP. Supports 4K @60 Hz input, transmission, and output
- Supports decoding national standard stream. The decoding board supports H.264/H.265 encoding format. Supports 16 channels 1080P@30 network signal decoding and displaying on the wall, and the local video file playback displaying on the wall
- Supports 1/4/9/16 image division of a single output interface, and the full screen switching of sub windows
- Up to 8+2 image layers can be displayed on one screen, including one caption layer and a background layer. The virtual LED font and the background color is adjustable. Supports the scrolling mode. The resolution of background layer is up to 16384 x 8192
- Users have the permission to manage the signal sources and video wall
- Built-in matrix feature for opening a signal source on several windows simultaneously
- Supports crossing-window video roaming
- Supports SADP searching active IP address and resetting the password of administrator
- Supports the adjustment of display wall connection to match virtual display wall window of client software with the output interface of controller
- The client software supports the preview of the signal displaying on the wall. Users can conveniently call the signal
- A single device supports 8 video wall management
- The fan speed of the chassis is self-adaptive to the temperature
- Supports video wall echo and signal source list preview
- Fluent video output without frame extraction to guarantee the lossless output of 60 frames
Specifications
| Hardware | |
|---|---|
| Slot Number | 23 (mixed insertion of input and output boards) |
| Motherboard (DS-C30S-MCU) | |
| Network Interface | 2, 10 M/100 M/1000 M self-adaptive Ethernet interfaces 1, 10 Gigabit optical interface |
| USB Interface | 2 × USB 2.0 (Reserved) |
| RS-232 Serial Interface | 1 |
| Network Decoding Board (DS-C30S-DEC) | |
| Decoding Performance | Resolution: 16 x 1080P30 or 32 x 720P@30. Supports decoding up to 1600W pixels. Format: H.265, H.264, Mpeg4, etc. Audio Decoding Channel Number: 32 Format: audio encoding format G711-A, G711-U, G722.1, G726-16/U/A, MPEG, AAC-LC |
| DVI Input Board (DS-C30S-04DI) | |
| Interface | 4 × DVI interface |
| DVI Input Resolution | 1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz, 1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 × 1200@60 Hz, 1280 × 720P@50 Hz, 1280 × 720P@60 Hz, 1920×1080P@50 Hz, 1920 × 1080P@60 Hz, 1920 × 1200@60 Hz |
| VGA Input Board (DS-C30S-04VI) | |
| Interface | 4 × VGA interface |
| VGA Input Resolution | 1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz, 1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 × 1200@60 Hz, 1280 × 720P@50 Hz, 1280 × 720P@60 Hz, 1920×1080P@50 Hz, 1920 × 1080P@60 Hz, 1920 × 1200@60 Hz |
| HDMI Input Board (DS-C30S-04HI) | |
| Interface | 4 × HDMI interface |
| HDMI Input Resolution | 1024×768@60Hz, 1280×1024@60Hz, 1366×768@60Hz, 1440×900@60Hz, 1680×1050@60Hz, 1280×960@60Hz, 1600×1200@60Hz, 1280×720P@50Hz, 1280×720P@60Hz, 1920×1080P@50Hz, 1920×1080P@60Hz, 1920×1200@60Hz |
| HDMI Input Board (DS-C30S-02HI/4K) | |
| Interface | 2 × HDMI interface |
| HDMI Input Resolution | custom resolution: width 1920 ~ 4092, height 1080 ~ 2160, frame rate 30/60. Only supports frame rate of 60 when the width is less than 2560 or the height is less than 1940. |
| DP Input Board (DS-C30S-02DPI/4K | |
| Interface | 2 × DP interface |
| DP Input Resolution | 1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz, 1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 × 1200@60 Hz, 1280 × 720P@50 Hz, 1280 × 720P@60 Hz, 1920 × 1080P@50 Hz, 1920 × 1080P@60 Hz, 1920 × 1200@60 Hz, 3840 x 2160@30 Hz, 3840 × 2160@60 Hz, 4096 x 2160@30 Hz, 4096 x 2160@60 Hz |
| DVI Output Board (DS-C30S-04DO) | |
| Interface | 4 × DVI interface |
| DVI Output Resolution | 1920 x 1200@60 HZ, 1600 x 1200@60 Hz, 1920 x 1080@60 Hz, 1680 x 1050@60 Hz, 1280 x 720@60 Hz, 1280 x 1024@60 Hz, 1024 x 768@60 Hz Supports LED screen and custom resolution output. Can be configured with maximum area length x width less than 260 W. |
| HDMI Output Board (DS-C30S-02HO/4K) | |
| Interface | 2 × HDMI interface |
| HDMI Output Resolution | 4096 × 2160@60 Hz, 3840 × 2160@60 Hz, 2560 × 1600@60 Hz, 2560 ×1440@60 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz |
| Two-in-one output board card(DSC30S-L104) | |
| Interface | 4 x miniSAS to 20 x 1G electrical interfaces, 2 x 10G optical interfaces |
| Video Output Resolution | 1920 × 1200@60 HZ, 1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1680 × 1050@60 Hz, 1280 × 720@60 Hz, 1280 × 1024@60 Hz, 1024 × 768@60 Hz, Supports LED screen and custom resolution output. Can be configured with maximum area length x width less than 260 W. |
| Others | |
| Power Supply | AC 100 ~ 240 V, 50/60 H 2+1 redundant power supplies |
| Consumption | ≤1000 W (full-loaded) |
| Working Temperature | 0 °C ~ 50 °C |
| Working Humidity | 10 ~ 90% (non-condensing) |
| Chassis | 8 U |
| Dimension | 447 mm (depth) ×354.8 mm (height) × 442 mm (width) |
| Weight | ≤60 KG (full-loaded) |
