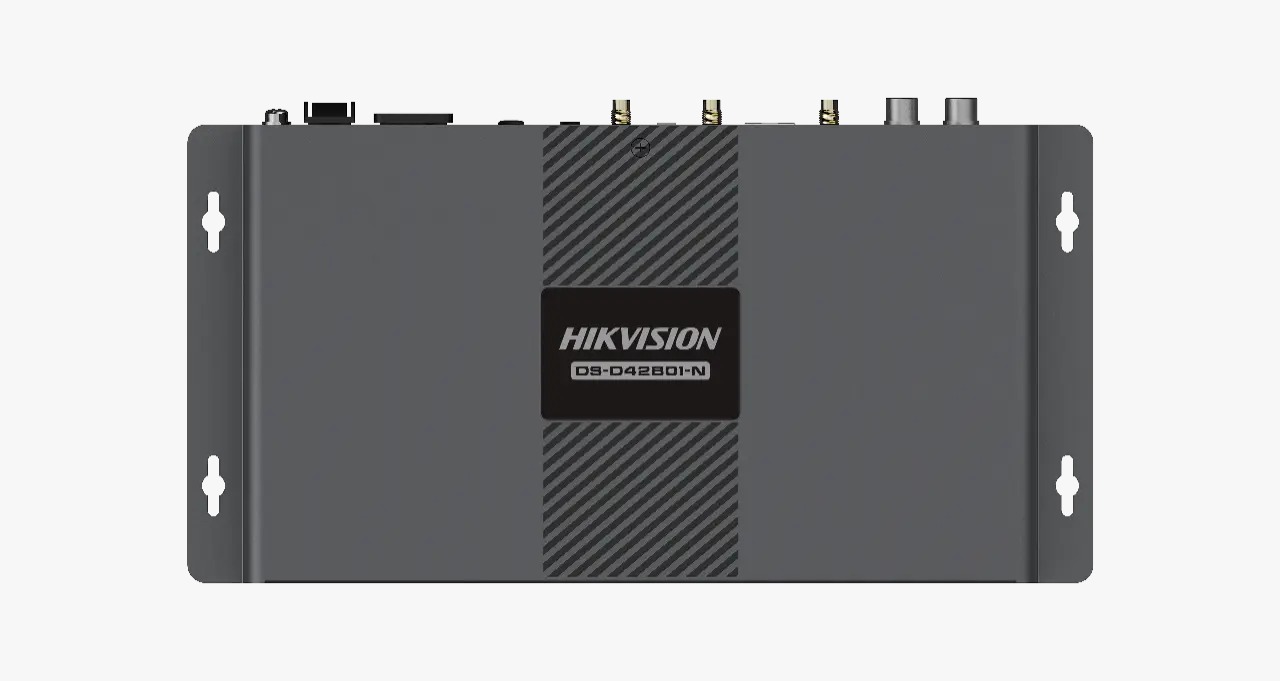

LED Display Controller
- Loading capacity up to 650,000 pixels, maximum width: 4096 pixels, maximum height: 4096 pixels
- 2x Gigabit Ethernet ports
- Allows for play content imported from a USB drive and firmware upgrade over USB
Specifications
| Video & Audio Input | Internal video source |
| Video & Audio Output | 1 × Audio Out |
| Network Interface | 1 |
| Control Interface | RJ45 × 1, WiFi AP |
| Max. Load Capacity | 0.65 MP |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz |
| Processing Depth | 8 bit |
| Grey Level | 16 bit |
| Display Color | 281 trillion |
| Brightness Control | 1 to 255 adjustable |
| Average Consumption | 6 W |
| Input Voltage | 100 to 240 VAC @50/60 Hz |
| Working Temperature | -20 to 60 °C |
| Working Humidity | 0% to 80% |
| Storage Temperature | -40 to 80 °C |
| Storage Humidity | 0% to 80% |
| Product Dimensions (W x H x D) | 274.3 x 139 x 40 mm |
| Certification | CE-EMC, CE-LVD, CB-LVD, RoHS |
