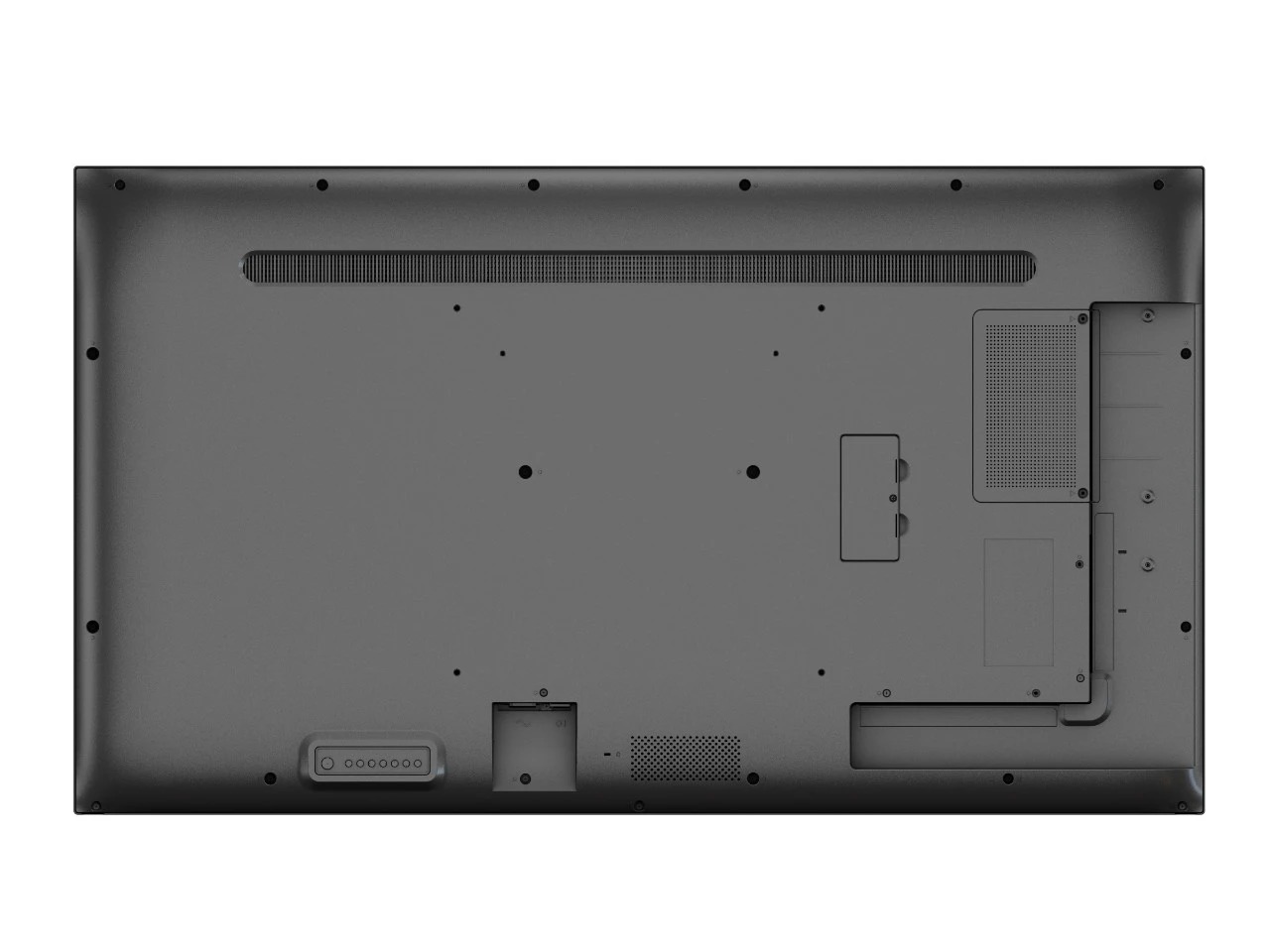

55-inch Digital Signage

  • Plastic shell appearance, slim frame, and all-in-one design
  • Exquisite image, auto-coloring and image-enhancing engine
  • Variable materials, static and dynamic materials, including pictures, audio, video, scrolling subtitle, PDF, webpages, live video, number calling, pop-up pictures, etc.
  • Flexible program schedule, free schedules and district play of multiple materials and variable play modes: play by day, play by week, play by loop, custom play, etc.
  • Centralized management, remotely control and manage one screen or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview, remotely release programs and updates local (USB) programs
  • Organization permission, 5-level organization is available for managing materials, programs, terminals, and users, support creating custom users, allocating permission for users according to user level, and permission templates
  • Multiple security safeguards, 3-level check of materials, programs and schedules to prevent mistake release, encryption of data in storage and transmission to prevent data tampering, and with no default password, users can activate and set initial password to guarantee the password safety

Specifications

Display
Screen Size 55 inch
Screen Active Zone 1209.6(H) × 680.4(V) mm
Backlight DLED
Pixel Pitch 0.315 (H) × 0.315 (V) mm
Resolution 3840 × 2160
Brightness 700 cd/m²
Visual Angle Horizontal: 178°, Vertical: 178°
Color Depth 1.07G(8 Bits+FRC)
Contrast 5000:1
Response Time 8 ms
Refresh Rate 60 Hz
Color Gamut 72% NTSC
Built-in System
CPU A73*2+A53*2, 1.7GHz
Memory 3 GB
Built-in Storage 32 GB
Interface
Video & Audio Output DP1.2 × 1, Audio line out × 1
Network Interface DVI-I × 1, HDMI2.0 × 2, DP1.2 × 1, Audio line in × 1
Data Transmission Interface USB 2.0 × 2, TF Card × 1
General
Power AC 100V-240V
Power Consumption ≤ 315 W
Standby Consumption ≤ 0.5 W
Working Temparature 0 °C to 40 °C (32 °F to 104 °F)
Workung Humidity 20% to 80% RH
Product Dimensions 1241.8 × 712.6 × 63.5 mm
Packing Dimensions 1350 × 860 × 160 mm
Weight Net weight: 16.6 kg
Gross weight: 23kg
