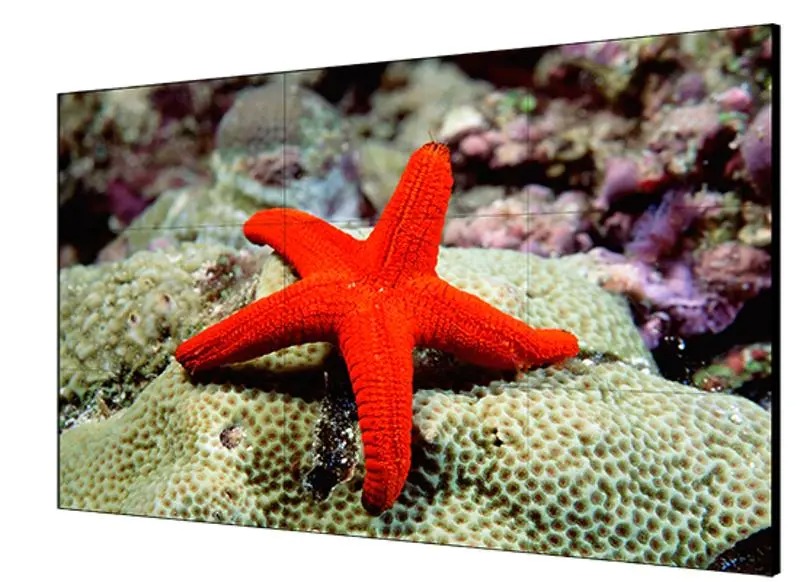

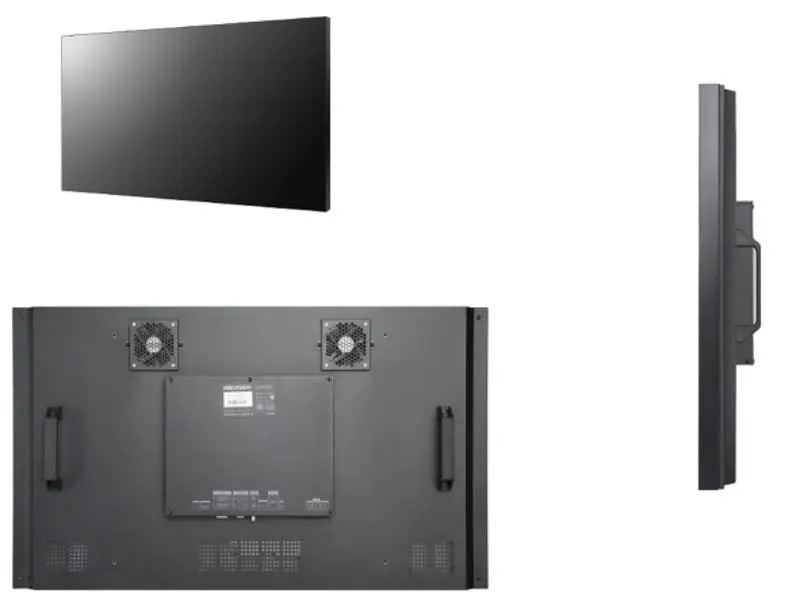

55-inch 3.5 mm LCD Display Unit
- 4K signal input, auto loop up to 30 screens with HDMI interfaces
- Switching between three picture modes: Monitoring, Meeting, and Movie
- Factory calibration for color and brightness uniformity
- Direct-lit LED backlight with uniform brightness and no boundary shadows
- 1920 × 1080 resolution, 178° viewing angle
- Ultra-narrow 3.5 mm bezel design
- Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
- Stable and 24-hour continuous working
- Metal casing for preventing from radiation and magnetic & electric field interference
- Wall-mount and modular brackets available to meet various installation requirements
Specifications
| Display | |
|---|---|
| Diagonal Size (inch) | 55" |
| Backlight | LED Backlight (Direct type) |
| Panel | IPS |
| Resolution | 1920 x 1080 |
| Color | 16.7M |
| Visual Angle | Horizontal: 178°, Vertical: 178° |
| Response Time | 8 ms (G to G) |
| Contrast | 1200:1 |
| Brightness | 500 cd/m² |
| Dot Pitch (H x V) | "0.63 mm Ă— 0.63 mm (0.025" Ă— 0.025") |
| Color Saturation | 72% |
| Screen Moving Area (HxV) | 1209.63 mm Ă— 680.34 mm (47.62" Ă— 26.78") |
| Side Frame Size | |
| Physical Seam | 3.5 mm (0.14") |
| Interface | |
| Input Interface | VGA Ă— 1, HDMI Ă— 1, DVI Ă— 1, DP Ă— 1, USB Ă— 1 |
| Output Interface | HDMI Ă— 1 |
| Control Interface | RS232 IN Ă— 1, RS232 OUT Ă— 1 |
| Power | |
| Power Consumption | 187 W |
| Power Requirement | 100 to 240 VAC, 50 or 60 Hz |
| Working Environment | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10% to 80% (No Condensation) |
| Working Life | ≥ 60,000 Hours |
| Physical Features | |
| Dimension (WxHxD) | 1213.5 mm Ă— 684.3 mm Ă— 71.74 mm (47.78'' Ă— 26.94'' Ă— 2.82'') |
| Frame Width | 2.3 mm (top/left) 1.2 mm (bottom/right) |
