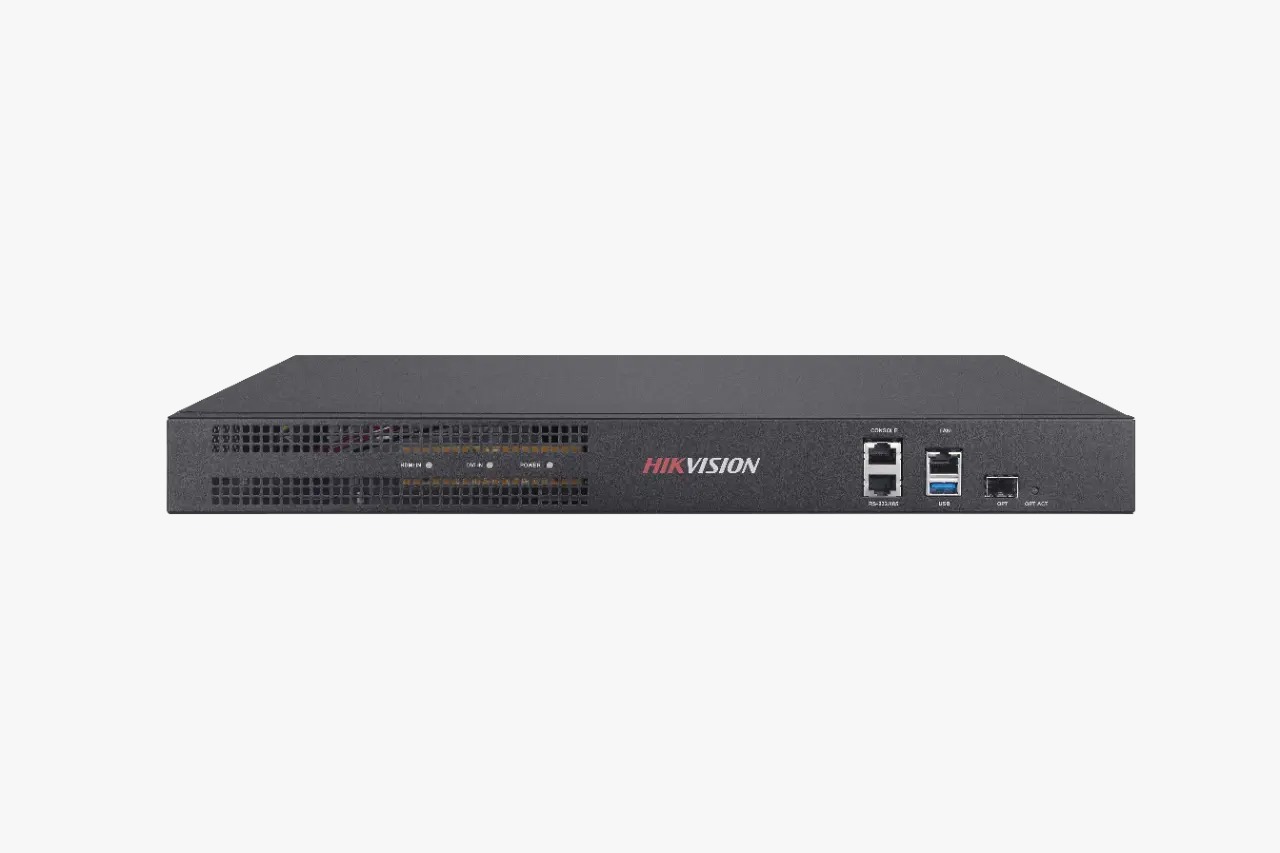

4k Decoder

  • Provides HDMI (adaptable to DVI-D) and BNC output interfaces
  • Up to 4k (3840 x 2160 @30Hz) via HDMI output interfaces (only for odd interface)
  • H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression
  • PS, RTP, TS, ES, HIK encapsulation formats
  • Three encoding levels: baseline, main, and high-profile
  • G.722, G711A, G726, G711U, MPEG-L2, and AAC audio compression
  • Two decoding modes: active decoding and passive decoding
  • Remote video files’ decoding output
  • Provides DVI input interface
  • Supports window opening, window roaming, and window split
  • Supports multi-screen control with PC installed with RSC server
  • Gets stream and decodes via URL and RTSP from encoding devices
  • Displays the decoded video stream on the video wall by directly linking camera by stream media forwarding
  • You can configure what the video wall shows when decoding ends and streaming fails via the web browser and client software
  • Configurable LED width and height parameters when the LED is connected
  • Regular and irregular virtual screen configurable to display multiple signal sources and get rid of the restriction of physical screen
  • Accessible by 2.4MP DeepinView Camera
  • Accessible by thermal network camera and you can view temperature measurement, dynamic fire source detection, ship detection and VCA information in live view and playback
  • You can enable or disable the smart information for the thermal network camera
  • Port aggregation technology (Ethernet Channel)

Specifications

Video Stream Format Supported H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG
Audio Stream Format Supported G.722, G711A, G726, G711U, MPEG2-L2, and AAC
Decoding Capability 12 MP @ 20 fps: 4-ch
8 MP @ 30 fps: 8-ch
5 MP @ 30 fps: 12-ch
3 MP @ 30 fps: 20-ch
1080p: 36-ch
720p: 72-ch
Split Screen 1/2/4/6/8/9/12/16/25/36
BNC Output PAL: 704 × 576, NTSC: 704 × 480
2-ch, 1-ch DB15
HDMI Output 4K: 3840 × 2160@30 Hz ( only for odd interface),
1080p: 1920 × 1080@50/60 Hz,
720p: 1280 × 720@50 Hz/60 Hz
4-ch
Video Input 4K: 3840 × 2160@30 Hz (only for HDMI),
1080p: 1920 × 1080@50/60 Hz,
720p: 1280 × 720@50 Hz/60 Hz
1-ch, HDMI connector; 1-ch, DVI-I connector
Audio Output 4 (DB15 × 1)
Network Interface RJ45 interface × 1, 10/100/1000 Mbps adaptive Optic interface × 1, 100 base-FX/1000 base-X An RJ45 interface and an optic interface form a combo.
Serial Interface 1 RS-232 (RJ45), 1 RS-485
Dimensions (W x D x H) 440 mm × 320.8 mm × 44.5 mm (17.32 inch × 12.63 inch × 1.75 inch)
