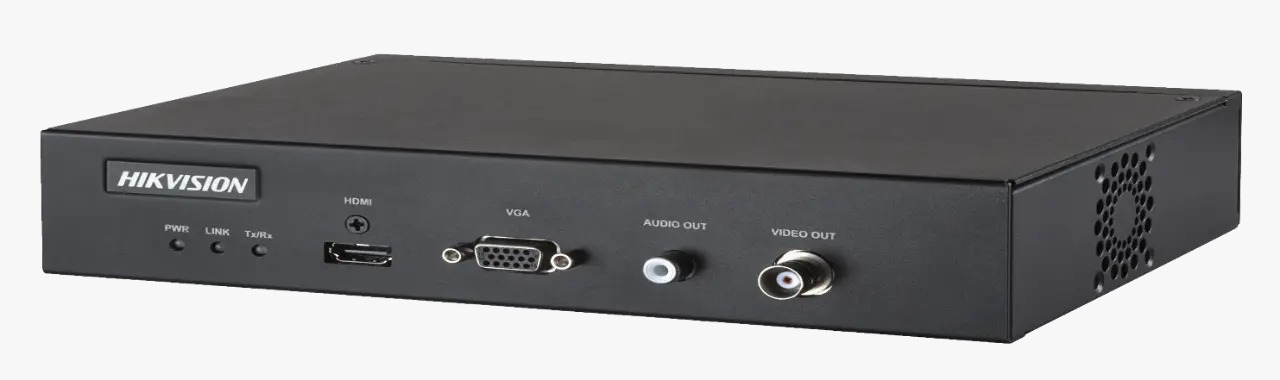

4k Decoder
- Provides HDMI, VGA, and BNC output interfaces
- Up to 4K (3840 x 2160 @30Hz) via HDMI output interface
- H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG compression
- PS, RTP, TS, ES, HIK encapsulation formats
- Three encoding levels, baseline, main, and high-profile
- G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression
- Two decoding modes: active decoding and passive decoding
- Remote video files’ decoding output
- Supports two-way audio via client software
- Supports window opening, window roaming, and window split
- Supports multi-screen control with PC installer with RSC server
- Gets stream and decodes via URL and RTSP from decoding devices
- Displays the decoded video stream on the video wall by directly linking cameras or by stream media forwarding
- You can configure what the video wall shows when decoding ends and streaming fails via the Web browser and client software
- Configurable LED width and height parameters when the LED is connected
- Regular and irregular virtual screen configurable to display multiple signal sources and get rid of the restriction of physical screen
- Accessible by 2.4 MP DeepinView Camera
- Accessible by thermal network camera and you can view the temperature measurement, dynamic fire source detection, ship detection and VCA information in live view and playback
- You can enable or disable the smart information for the thermal network camera
- Two-way audio
- Port aggregation technology (Ethernet Channel)
Specifications
| Video Stream Format Supported | H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG |
| Audio Stream Format Supported | G.722, G711A, G726, G711U, MPEG2-L2, and AAC |
| Decoding Capability | 12 MP @ 20 fps: 2-ch 8 MP @ 30 fps: 4-ch 5 MP @ 30 fps: 6-ch 3 MP @ 30 fps: 10-ch 1080p @ 30 fps: 16-ch |
| Split Screen | 1/4/6/8/9/12/16 |
| VGA Output | 1080p: 1920 × 1080 @ 50/60 Hz WSXGA: 1680 × 1050 @ 60 Hz SXGA: 1280 × 1024 @ 60 Hz 720p: 1280 × 720 @ 50/60 Hz 1-ch |
| BNC Output | PAL: 704 × 576, NTSC: 704 × 480 1-ch |
| HDMI Output | 4K: 3840 × 2160@30 Hz ( only for odd interface), 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz 1-ch |
| Video Input | VGA, DVI-I: 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz HDMI × 1, VGA × 1, BNC × 1 |
| CVBS Output | - |
| Audio Output | 1-ch |
| Network Interface | 1 (10/100/1000 Mbps self-adaptive Ethernet interface) |
| Serial Interface | 1 RS-232 (RJ45), 1 RS-485 |
| Two-Way Audio In | 1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ) |
| Two-Way Audio Out | 1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ) |
| Alarm In | 8 |
| Alarm Out | 8 |
| Dimensions (W x D x H) | 220 mm × 148 mm × 45 mm (8.66 inch × 5.83 inch × 1.77 inch) |
