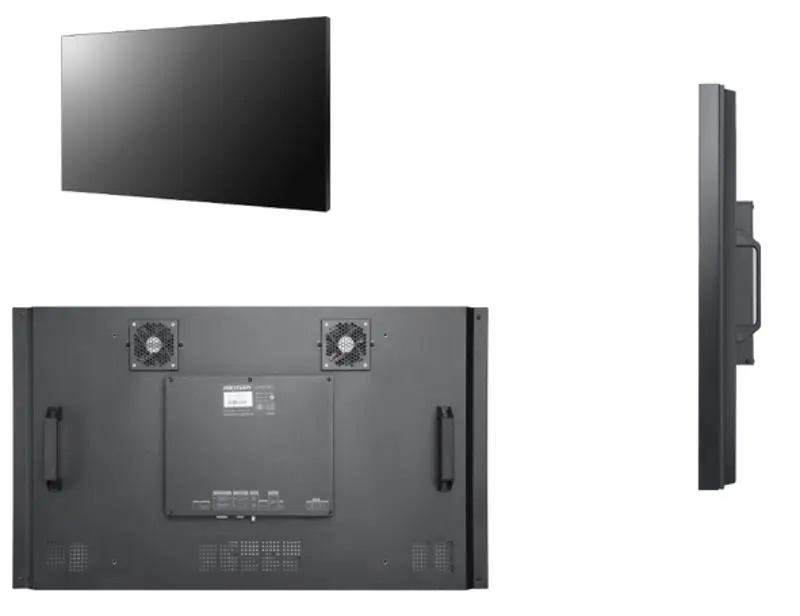

49-inch 3.5 mm LCD Display Unit
- 4K signal input, auto loop up to 30 screens with HDMI interfaces
- Switching between three picture modes: Monitoring, Meeting, and Movie
- Factory calibration for color and brightness uniformity
- Direct-lit LED backlight with uniform brightness and no boundary shadows
- 1920 × 1080 resolution, 178° viewing angle
- Ultra-narrow 3.5 mm bezel design
- Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
- Stable and 24-hour continuous working
- Metal casing for preventing from radiation and magnetic & electric field interference
- Wall-mount and modular brackets available to meet various installation requirements
Specifications
| Display | |
|---|---|
| Diagonal Size (inch) | 49" |
| Backlight | LED Backlight (Direct type) |
| Panel | IPS |
| Resolution | 1920 x 1080 |
| Color | 16.7M |
| Visual Angle | Horizontal: 178°, Vertical: 178° |
| Response Time | 8 ms (G to G) |
| Contrast | 1200:1 |
| Brightness | 500 cd/m² |
| Dot Pitch (H x V) | 0.56 mm × 0.56 mm (0.022" × 0.022") |
| Color Saturation | 72% |
| Screen Moving Area (HxV) | 1074.24 mm × 604.26 mm (42.29" ×23.78") |
| Side Frame Size | |
| Physical Seam | 3.5 mm (0.14") |
| Interface | |
| Input Interface | VGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1 |
| Output Interface | HDMI × 1 |
| Control Interface | RS232 IN × 1, RS232 OUT × 1 |
| Power | |
| Power Consumption | 134 W |
| Power Requirement | 100 to 240 VAC, 50 or 60 Hz |
| Working Environment | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10% to 80% (No Condensation) |
| Working Life | ≥ 60,000 Hours |
| Physical Features | |
| Dimension (WxHxD) | 1078.34 mm × 608.36 mm× 72.8 mm (42.45"× 23.95"× 2.87'') |
| Frame Width | 2.3 mm (top/left) 1.2 mm (bottom/right) |
