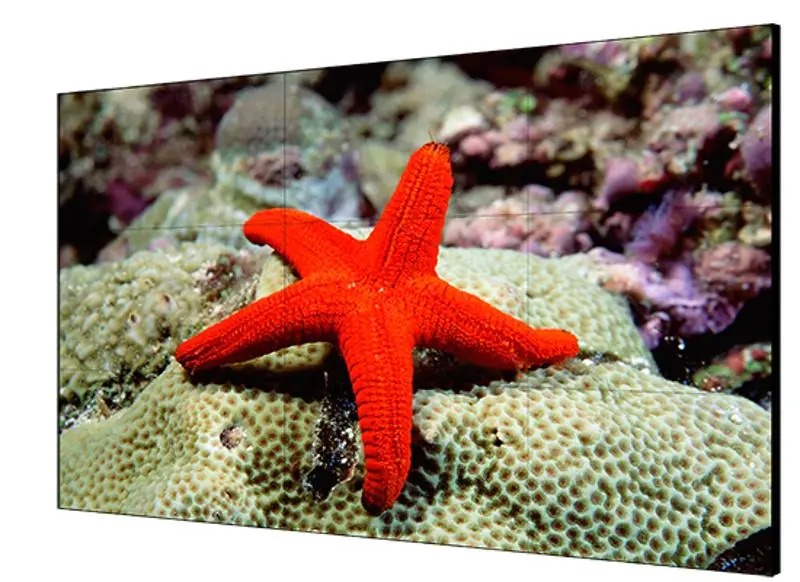

46-inch 3.5 mm LCD Display Unit

  • 4K signal input, auto loop up to 30 screens with HDMI interfaces
  • Switching between three picture modes: Monitoring, Meeting, and Movie
  • Factory calibration for color and brightness uniformity
  • Direct-lit LED backlight with uniform brightness and no boundary shadows
  • 1920 × 1080 resolution, 178° viewing angle
  • Ultra-narrow 3.5 mm bezel design
  • Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
  • Stable and 24-hour continuous working
  • Metal casing for preventing from radiation and magnetic & electric field interference
  • Wall-mount and modular brackets available to meet various installation requirements

Specifications

Display
Diagonal Size (inch) 46"
Backlight LED Backlight (Direct type)
Panel IPS
Resolution 1920 x 1080
Color 16.7M
Visual Angle Horizontal: 178°, Vertical: 178°
Response Time 8 ms (G to G)
Contrast 1200:1
Brightness 500 cd/m²
Dot Pitch (H x V) 0.53 mm × 0.53 mm
(0.021" × 0.021")
Color Saturation 72%
Screen Moving Area (HxV) 1018.08 mm × 572.67 mm
(40.08" × 22.55")
Side Frame Size
Physical Seam 3.5 mm (0.14")
Interface
Input Interface VGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
Output Interface HDMI × 1
Control Interface RS232 IN × 1, RS232 OUT × 1
Power
Power Consumption 111 W
Power Requirement 100 to 240 VAC, 50 or 60 Hz
Working Environment
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10% to 80% (No Condensation)
Working Life ≥ 60,000 Hours

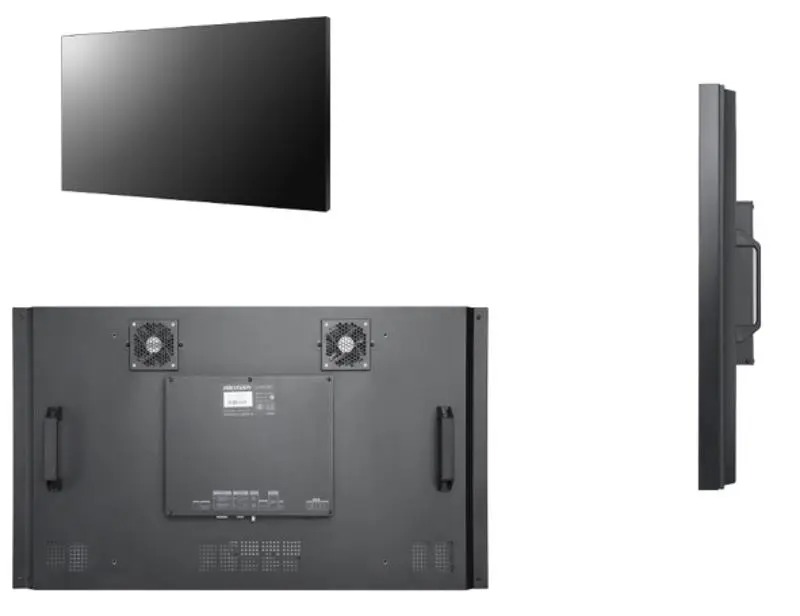

Physical Features
Dimension (WxHxD) 1021.98 mm × 576.57 mm × 72.25 mm
(40.24'' × 22.7'' × 2.84'')
Frame Width 2.3 mm (top/left)
1.2 mm (bottom/right)
