| Module Composition |
| Pixel Structure |
SMD Triad |
| Pixel Pitch (mm) |
4.81 mm |
| Module Resolution (WxH) |
104 x52 |
| Module Dimension (WxH) |
500 x 250 |
| Unit Composition |
| Unit Module Composition (WxH) |
1 x 2 |

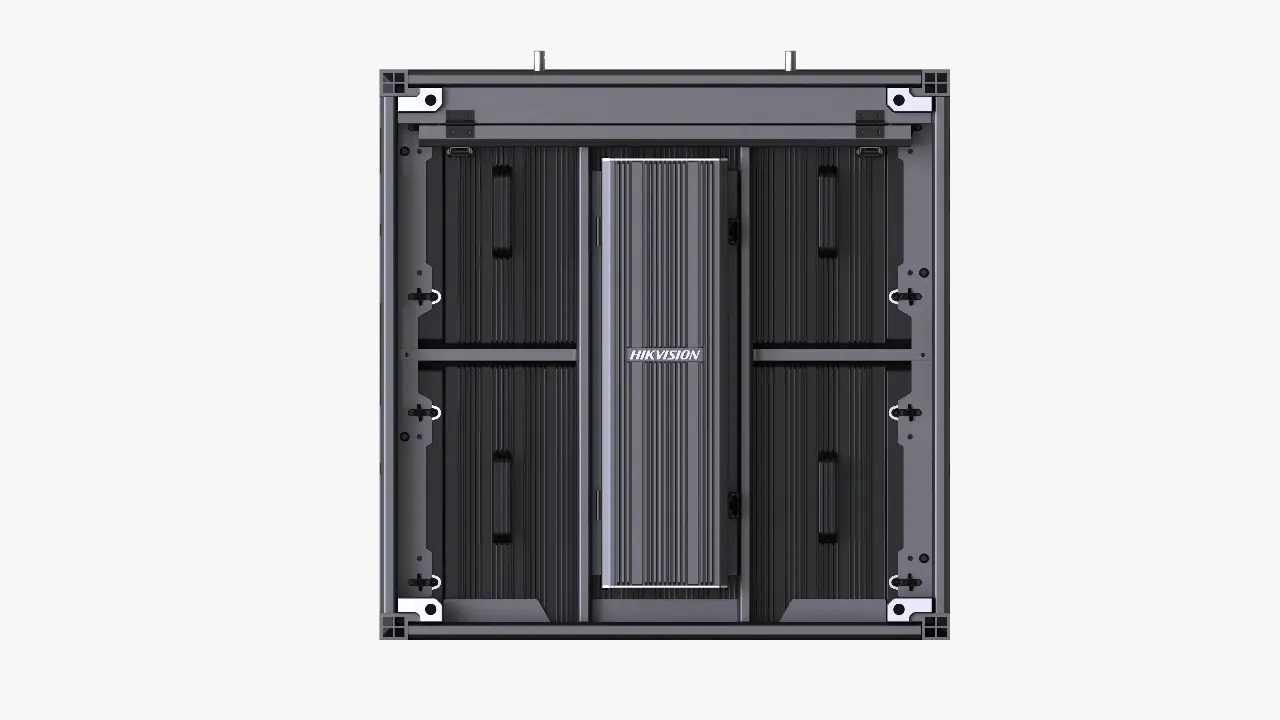

| Cabinet Size |
500*500 |
| Unit Resolution (WxH) |
104*104 |
| Unit Area |
0.25 m² |
| Weight |
9.12 Kg (20.11 lb) |
| Pixel Density |
43,264 dots/m² |
| Maintenance Mode |
Both front and rear maintenance |
| Unit Ratio |
1:1 |
| Optical Parameters |
| Brightness (nits) |
4,500 nits |
| Color Temperature (K) |
3,000 K to 9,500 K adjustable |
| Viewing Angle |
Horizontal 160°, vertical 90° |
| Luminous point center distance deviation |
＜ 3% |
| Brightness uniformity |
≥ 97% |
| Color uniformity |
≤ ± 0.003Cx, Cy |
| Electrical Parameters |
| Peak Consumption (W/m²) |
≤ 600W/m² |
| Average Consumption (W/m²) |
≤ 210W/m² |
| Power Supply |
AC 110 to 240V |
| Processing Performance |
| Drive Mode |
Constant current driving |
| Frame Rate |
60 Hz |
| Refresh Rate |
3840Hz |
| General |
| Service Life (H) |
>100,000 (H) |
| Temperature °C |
–40 to 60 °C |
| Humidity (RH) |
10%~95%RH |
| Certification |
CE-EMC, CE-LVD, CB-LVD, RoHS |
