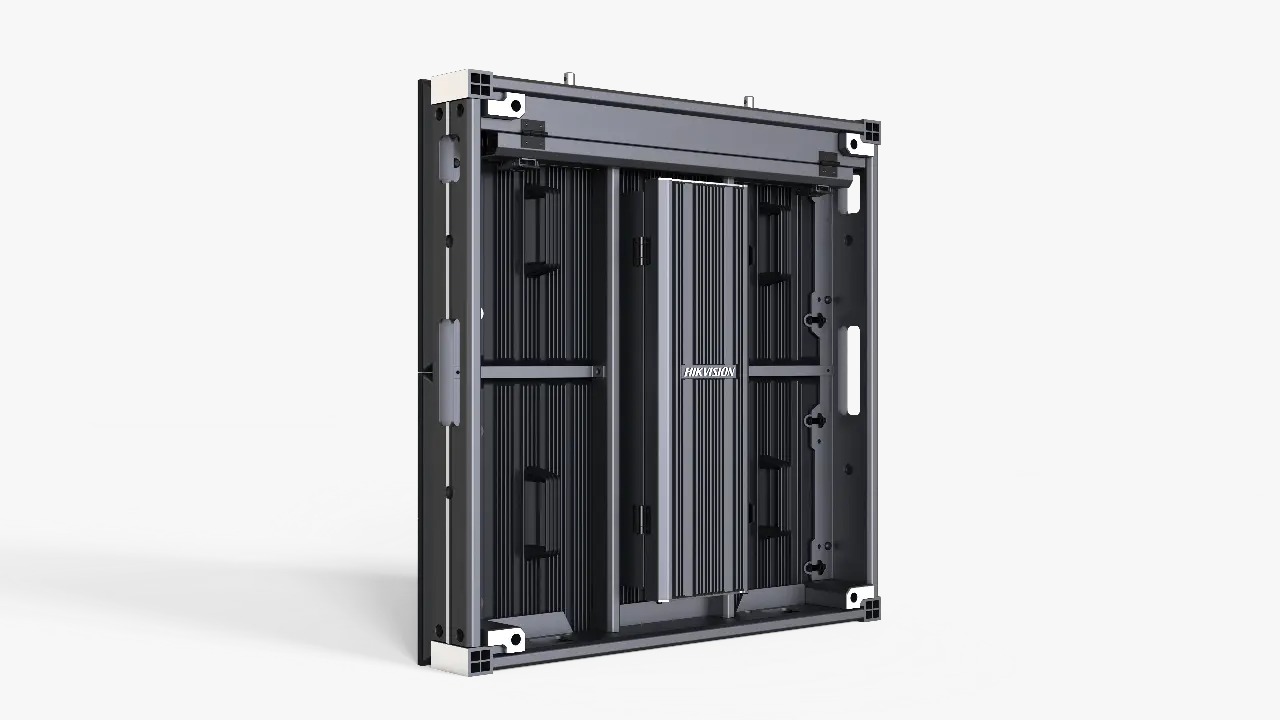

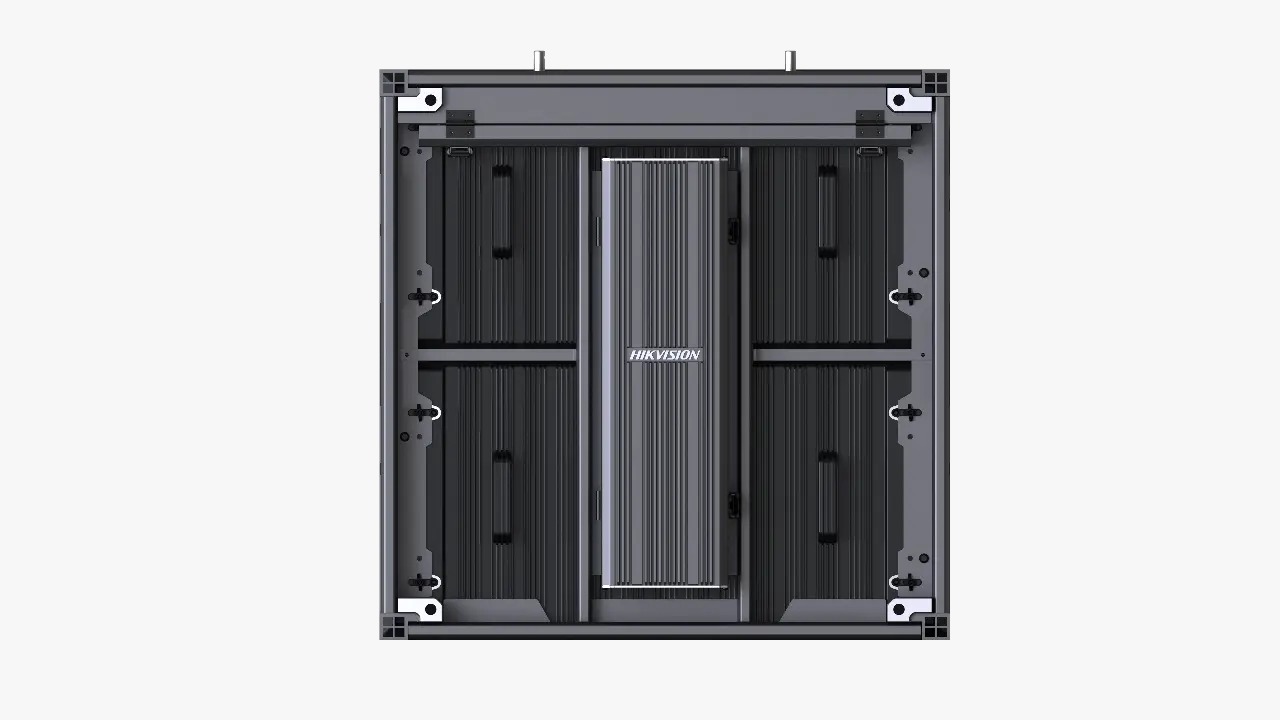

P3.9 Outdoor Fixel LED Display Unit

  • Support front and rear maintenance

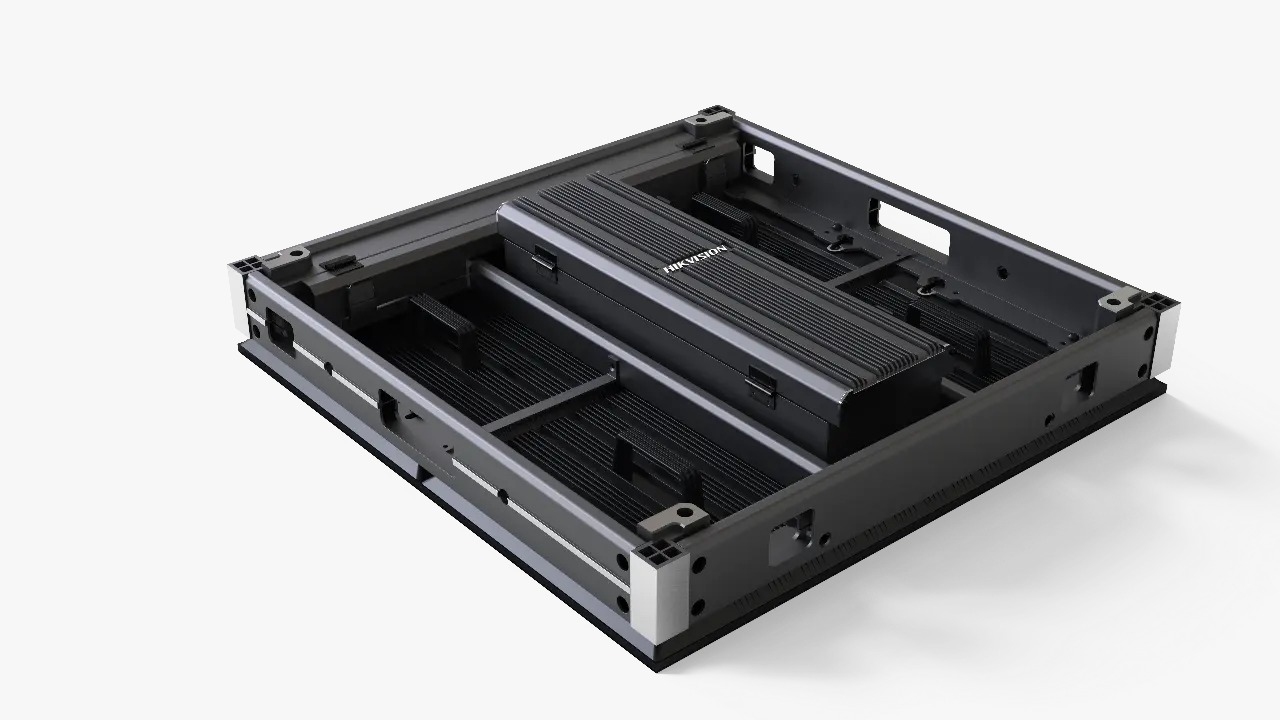

  • Using aluminum chassis with good heat dissipation, workable under 60 °C
  • All series aluminum profile cabinets support IP67(F)/IP66(R)
  • Apply unique technology, maximally saving 30% energy
  • Various cabinet sizes, applying to diverse scenes

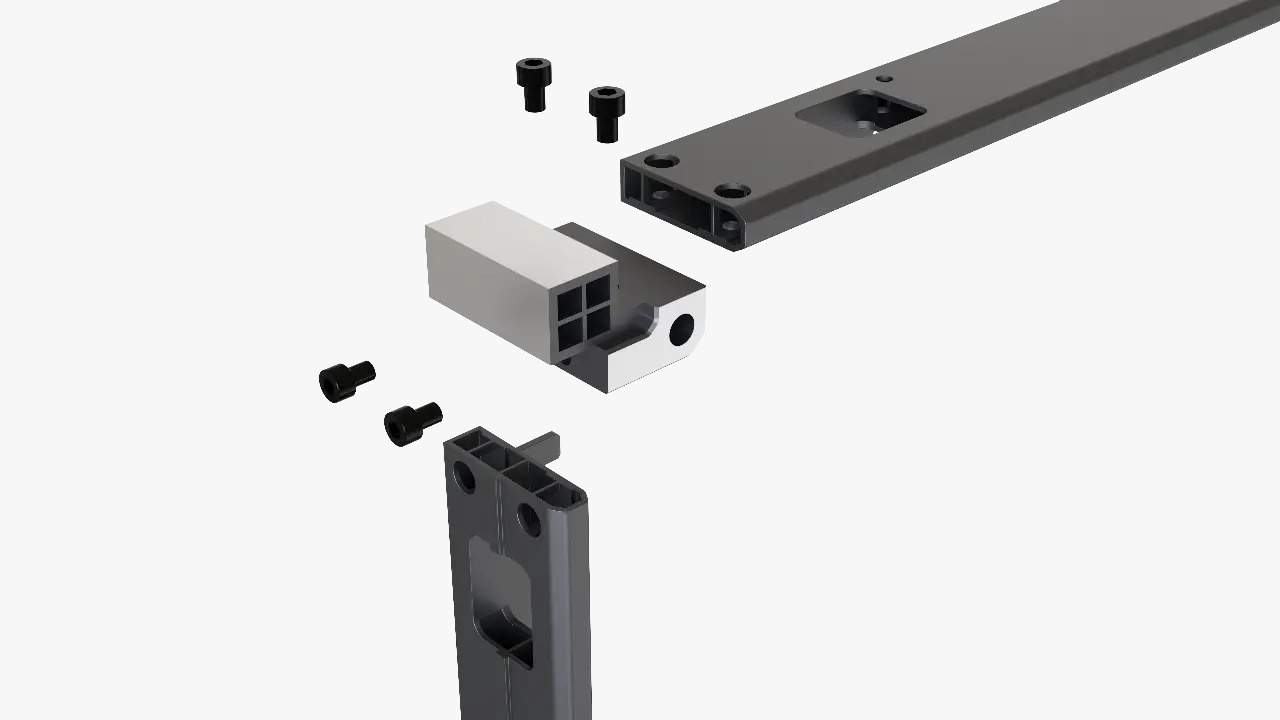

  • The cabinets support customized 45° corner cut to realize 90° right-angle splicing

Specifications

Module Composition
Pixel Structure SMD Triad
Pixel Pitch (mm) 3.91 mm
Module Resolution (WxH) 128 x 64
Module Dimension (WxH) 500 x 250
Unit Composition
Unit Module Composition (WxH) 1 x 2
Cabinet Size 500*500
Unit Resolution (WxH) 128 x 128
Unit Area 0.25 m²
Weight 9.12 Kg (20.11 lb)
Pixel Density 65,536 dots/m²
Maintenance Mode Both front and rear maintenance
Unit Ratio 1:1
Optical Parameters
Brightness (nits) 4,500 nits
Color Temperature (K) 3,000 K to 9,500 K adjustable
Viewing Angle Horizontal 160°, vertical 90°
Luminous point center distance deviation < 3%
Brightness uniformity ≥ 97%
Color uniformity ≤ ± 0.003Cx, Cy
Electrical Parameters
Peak Consumption (W/m²) ≤ 600W/m²
Average Consumption (W/m²) ≤ 210W/m²
Power Supply AC 110 to 240V
Processing Performance
Drive Mode Constant current driving
Frame Rate 60 Hz
Refresh Rate 3840Hz
General
Service Life (H) >100,000 (H)
Temperature °C –40 to 60 °C
Humidity (RH) 10%~95%RH
Certification CE-EMC, CE-LVD, CB-LVD, RoHS
